| 加工定制：否 | 类型：密封圈 | 材质：橡胶 |
| 品牌：机械密封件 | 型号：P115 | 作用：油封 |
| 样品或现货：现货 | 是否标准件：标准件 | 是否进口：是 |
| 适用范围：油缸 | 性质：耐高温 |

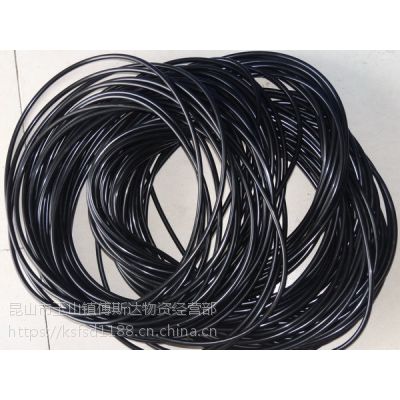

进口O型圈 P/G/S/AS568系列密封圈O型环密封件P115 114.60*5.70
型号NO. 尺寸（ID×C/S） 型号NO.尺寸（ID×C/S） 型号NO. 尺寸（ID×C/S）
P003 2.80*1.90 P034 33.70*3.50 P095 94.60*5.70
P004 3.80*1.90 P035 34.70*3.50 P100 99.60*5.70
P005 4.80*1.90 P035.5 35.20*3.50 P102 101.60*5.70
P006 5.80*1.90 P036 35.70*3.50 P105 104.60*5.70
P007 6.80*1.90 P038 37.70*3.50 P110 109.60*5.70
P008 7.80*1.90 P039 38.70*3.50 P112 111.60*5.70
P009 8.80*1.90 P040 39.70*3.50 P115 114.60*5.70
P010 9.80*1.90 P041 40.70*3.50 P120 119.60*5.70
P10A 9.80*2.40 P042 41.70*3.50 P125 124.60*5.70
P011 10.80*2.40 P044 43.70*3.50 P130 129.60*5.70
P011.2 11.00*2.40 P045 44.70*3.50 P132 131.60*5.70
P012 11.80*2.40 P046 45.70*3.50 P135 134.60*5.70
P012.5 12.30*2.40 P048 47.70*3.50 P140 139.60*5.70
P014 13.80*2.40 P049 48.70*3.50 P145 144.60*5.70
P015 14.80*2.40 P050 49.70*3.50 P150 149.60*5.70
P016 15.80*2.40 P048A 47.60*5.70 P150A 149.50*8.40
P018 17.80*2.40 P050A 49.60*5.70 P155 154.50*8.40
P020 19.80*2.40 P052 51.60*5.70 P160 159.50*8.40
P021 20.80*2.40 P053 52.60*5.70 P165 164.50*8.40
P022 21.80*2.40 P055 54.60*5.70 P170 169.50*8.40
P022A 21.70*3.50 P056 55.60*5.70 P175 174.50*8.40
P022.4 22.10*3.50 P058 57.60*5.70 P180 179.50*8.40
P024 23.70*3.50 P060 59.60*5.70 P185 184.50*8.40
P025 24.70*3.50 P062 61.60*5.70 P190 189.50*8.40
P025.5 25.20*3.50 P063 62.60*5.70 P195 194.50*8.40
P026 25.70*3.50 P065 64.60*5.70 P200 199.50*8.40
P028 27.70*3.50 P067 66.60*5.70 P205 204.50*8.40
P029 28.70*3.50 P070 69.60*5.70 P209 208.50*8.40
P029.5 29.20*3.50 P071 70.60*5.70 P210 209.50*8.40
P030 29.70*3.50 P075 74.60*5.70 P215 214.50*8.40
P031 30.70*3.50 P080 79.60*5.70 P220 219.50*8.40
P031.5 31.20*3.50 P085 84.60*5.70 P225 224.50*8.40
P032 31.70*3.50 P090 89.60*5.70 P230 229.50*8.40
